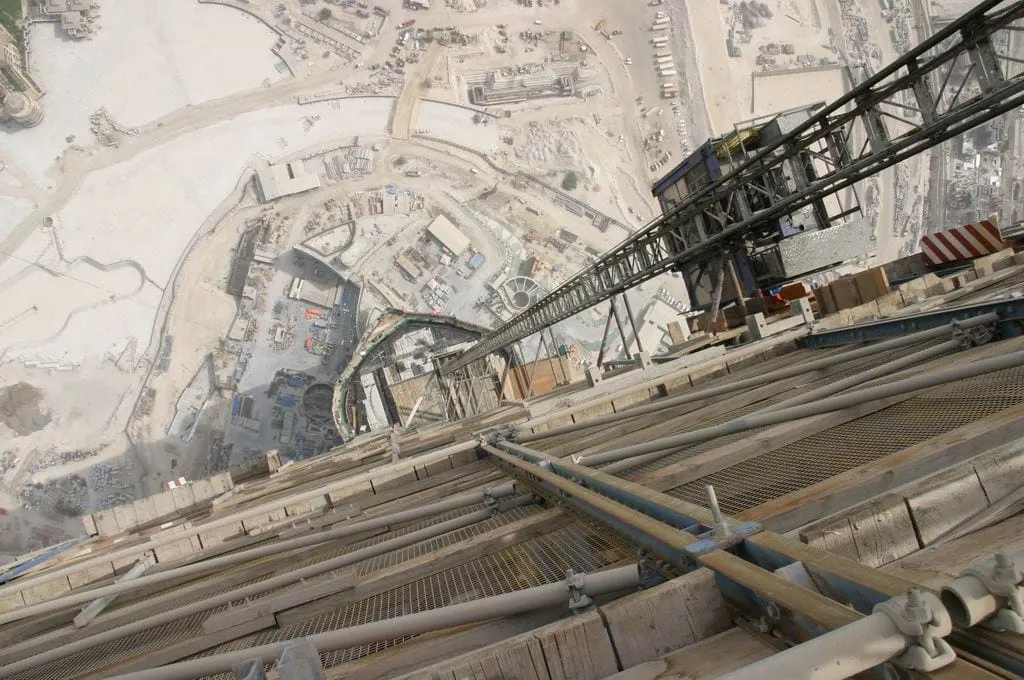

Burj Khalifa, Dubai, UAE
Constructional All Risks Technical Audit. David French Partnership was instructed by Munich Re to carry out an audit of the construction risks associated with the construction of the above project.
The purpose of the Survey and Audit was to identify any potential risks connected with the building construction operations that might give rise to a claim against the Construction All Risks (CAR) insurance cover and, in addition, propose methods by which these risks may be mitigated.
As well as general technical audits, specific visits were carried out to determine the likely cause and solutions adopted in relation to cracking and remedial works carried out to a number of the floor slabs and advice on the procedures put in place to erect the spire.
The project comprises an 815 m tall tower structure with approximately 200 working levels, with the lower 10 occupied by a hotel, and the top 40 as offices. The levels in between are apartments with some levels assigned for facilities.
The plan shape is a form of a three pointed flower, with three wings abutting a central core. The wings are about 40 m wide and extend about 63 m from the core centre, but step in at higher levels. The structure of the building is constructed of reinforced concrete to about 550 m, and above this a steel structure was constructed. The whole is supported on a single reinforced concrete pile cap resting on 194 high capacity piles. The building is clad with a unitised cladding system with stainless steel finishes.
